Processor & Chipset: Supports Intel® Xeon® E-2300 and 10th Gen Pentium® CPUs on Intel® C252 chipset (Socket LGA1200).
Memory & Storage: 4 DIMM slots supporting up to 128GB DDR4 ECC UDIMM at 3200MHz; 8x 3.5” SAS/SATA hot-swap bays (6 active by default).
Expansion & Connectivity: 2 PCIe Gen4 slots (x16 and x4), 1 M.2 PCIe Gen4 x4 slot, dual 1GbE LAN ports, and a dedicated management LAN.
Management & Security: Aspeed® AST2500 BMC with HTML5 iKVM, remote BIOS update, LDAP/AD support, and optional TPM 2.0 module.

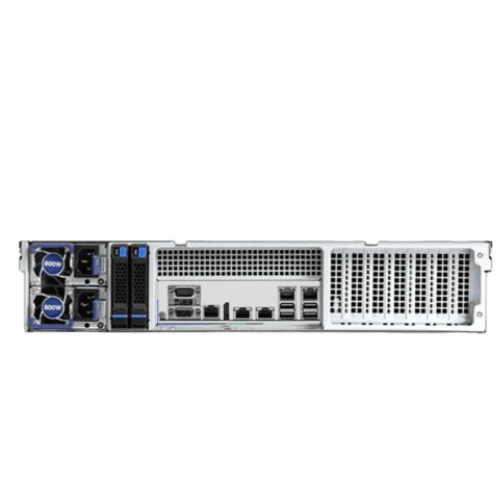

Chassis & Power: 2U rackmount, 3 x 80mm fans, redundant 550W/800W 80 PLUS Platinum PSUs, optional rear NVMe module, RAID controllers.
Entry Level For Networking & Hybrid/Private Cloud Server
Get the most performance bang for your IT buck. Hexadata packs industry leading innovation and unmatched performance into top-end compute. Hexadata lets you do more with your business data than you ever thought you could afford.
Hexadata Server are best-in-class high performance systems. The Hexadata has multiple built-in high speed Ethernet interfaces to further meet the compute demands of next generation business networks. Featuring an architecture powered by Intel Xeon processors along with DDR4 ECC memory that is expandable up to 128GB, Hexadata systems are the no compromise, high performing systems of choice for businesses that need the very best in capacity, performance and service.
Up to Single 8 cores Intel® Xeon® E Series Processor
Ensure the highest performance and productivity for your pro-level apps and most challenging projects. Avoid system crashes in the middle of your workflow with Error Correction Code (ECC) memory that detects and corrects soft errors in the memory system on the fly.
Up to 10G Network Interface
System integrated with Multiple high speed enterprise grade ethernet interface ensures the consistent & reliable performance on the network. By default system has dual 1G interfaces upgradable to dual 10G network ports.
Up to 192TB of Storage
Access and store massive amounts of data on the fly with 8 storage bays and M.2 slots.
Up to 128GB DDR4-3200MHz SDRAM
Get greater application responsiveness to tackle large workloads with Dual-channel architecture providing up to 128GB of memory.
The Server for Your Business Needs
Your valuable files, databases and even virtual images have never been safer
The Server system by Hexadata portfolio provides extreme performance for the most-demanding professional workflows. But the server vision goes beyond powerful processing and critical data storage, cutting-edge thermal design and unrelenting reliability.
