High-Density Storage: Supports up to 24 hot-swap 3.5" SATA/SAS drives in front and 4 additional 2.5" bays at the rear, with NVMe support.
Powerful CPU Compatibility: Single LGA 4677 socket for 5th/4th Gen Intel® Xeon® Scalable Processors, up to 350W TDP.
Advanced Memory Support: Up to 16 DDR5 RDIMM slots, supporting speeds up to 5600 MT/s and capacities up to 4TB+ with RDIMM-3DS.
Robust Networking: Integrated 2 x 10GbE and 2 x 1GbE LAN ports with NCSI support, plus dedicated IPMI LAN for management.
Scalable Expansion: Six PCIe Gen5 x16 slots for high-performance add-on cards, and dual SAS external ports for storage extension
Hexadata HD-SW170 High-Density Storage System
The Hexadata HD-SW170 4U Rackmount is a cutting-edge high-density storage solution designed to manage diverse data storage workloads with utmost efficiency. It offers exceptional reliability, security, manageability, and scalability for demanding business environments.
Key Features:
Processing Power: Supports with dual 5th/4th Gen Intel® Xeon® Scalable Processors to deliver robust computational performance.
Memory: Supports up to 8 channels of DDR5 RDIMM, with 16 DIMM slots for high-speed, scalable memory options.
Networking: Includes 2 x 10Gb/s LAN ports via Intel® X710-AT2 and 2 x 1Gb/s LAN ports via Intel® I210-AT for versatile connectivity.
Storage Expansion:

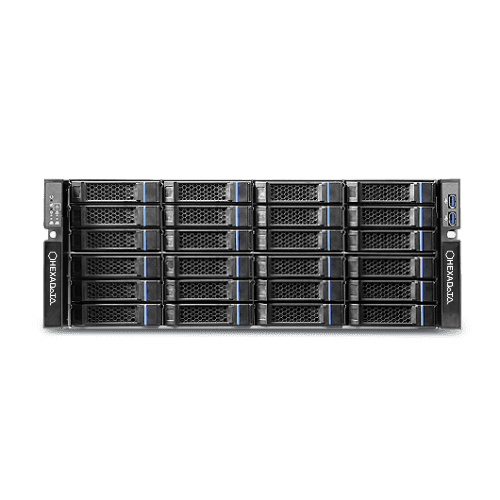

• 24 x 3.5"/2.5" SATA/SAS hot-swappable bays located on the front panel.

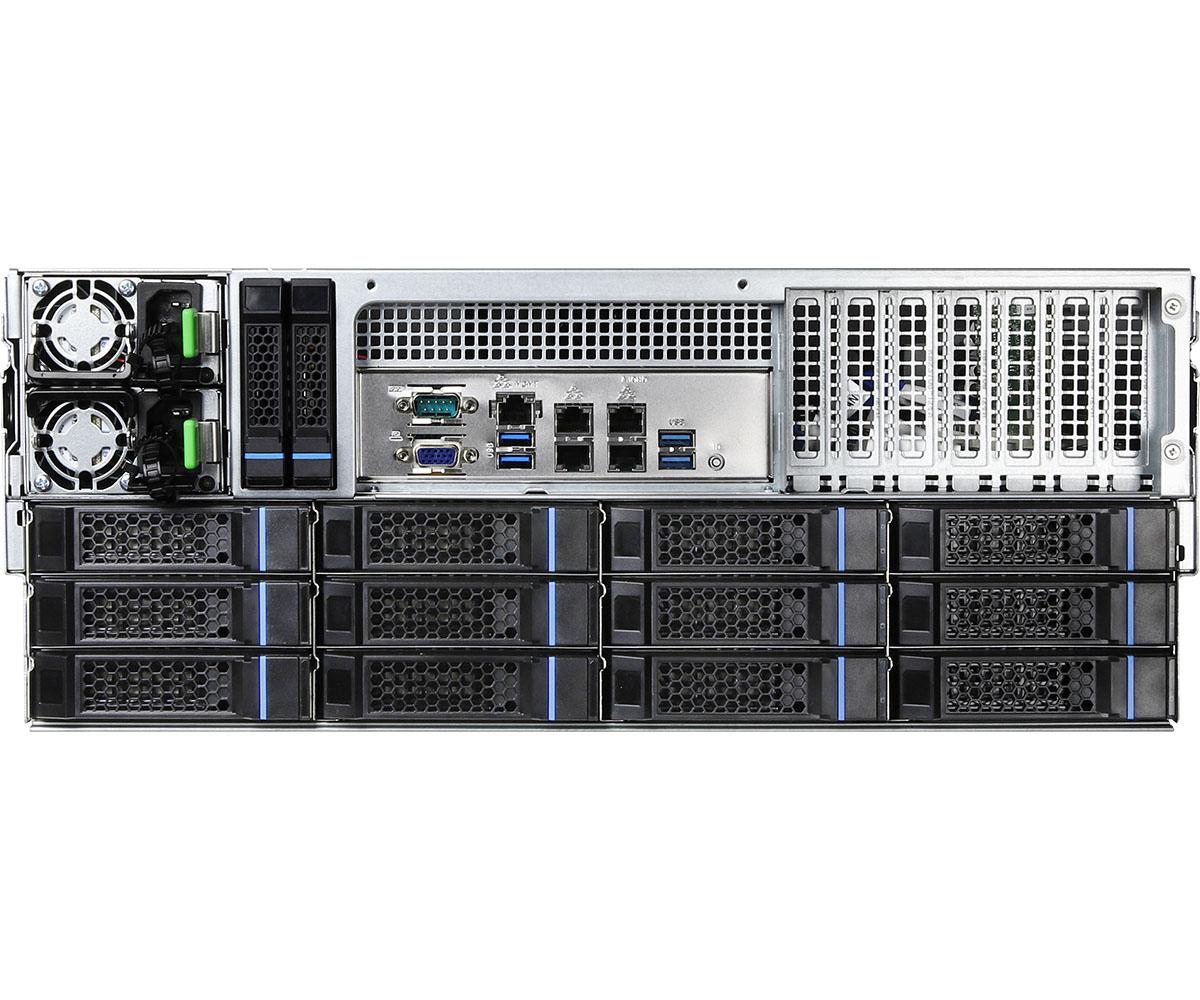

• 2 x 2.5" SATA/SAS bays on the rear for boot drives.
• Integrated SAS expander supporting 12Gb/s transfer speeds.
• 12G Dual SAS External Interface for connectivity to external direct expansion units, supporting up to 240 devices.
Expansion and Interface:
• 2 x M.2 slots with PCIe Gen4 x4 interface for high-speed storage solutions.
• 6 x LP PCIe Gen5 x16 slots for additional expansion cards.
• Optional support for 400G communication interfaces to meet high-bandwidth requirements.
Power Supply: Dual 1200W 80 PLUS Platinum redundant power supplies ensure high efficiency and reliability.
Remote Management: Dedicated remote management interface supports KVM over IP and remote media redirection for convenient off-site administration.
Security: Integrated TPM 2.0 chip for advanced data protection and security. The Hexadata HD-SW170 4U Rackmount is designed to deliver unparalleled performance and scalability while ensuring data integrity and system reliability. Its advanced features make it an ideal choice for enterprises requiring high-density, high-performance storage solutions.
Support Server OS
Hexadata has validated platforms for compatibility with Windows Server, Ubuntu, and RHEL for greater manageability and security.
Ease of Management
Hexadata servers come with Hexadata Management Console for IPMI management.
Continuous Operation
Systems have RAS features for continuous uptime and availability as users require and expect stable performance around the clock.
Energy Efficient
Our engineers have created a highly ecofriendly storage server platform for high performance system with fan profiles and a PSU with efficiency ≥ 94%.
Performance
Our solutions are engineered to handle the intense computational demands with high density data storage requirements.
Power Efficiency
Automatic Fan Speed Control
Hexadata servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Hexadata has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Hexadata TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Hexadata Management Console
For management and maintenance of a server or a small cluster, users can use the Hexadata Management Console, which is preinstalled on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the Hexadata Management Console also provides:
• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Supports Remote KVM over IP which can provide access of BIOS on remote system during the trading hours also.
• Supports remote media redirection through which even entire operating system and Patches can be deployed remotely without having the physical access of servers.
