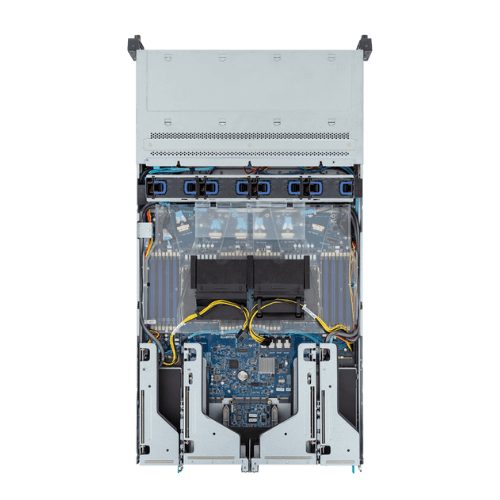

Processor Support: Dual LGA 4677 sockets supporting 4th & 5th Gen Intel® Xeon® Scalable processors and Intel® Xeon® CPU Max Series, with up to 350W TDP per CPU.
Memory Capacity & Speed: Up to 32 DDR5 DIMM slots with 8-channel architecture; supports up to 5600 MT/s and 256GB RDIMM-3DS per slot.

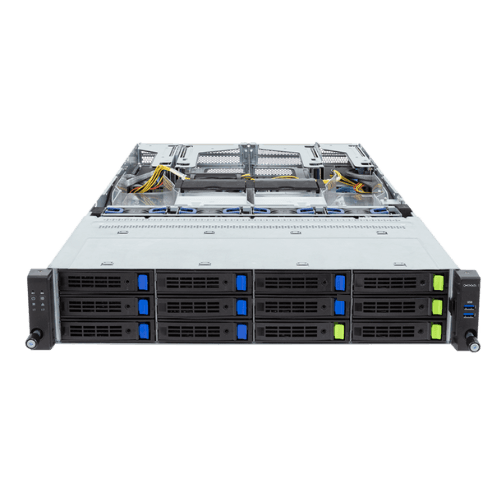

Storage & Expansion: Supports 12 front hot-swap drives (4 NVMe/SATA/SAS + 8 SATA/SAS) and multiple PCIe Gen5 x16/x8 expansion riser options, including GPU support.
Power & Cooling: Dual redundant 2700W 80 PLUS Titanium PSU and 4 high-speed 80mm fans (18,300 RPM) for robust power and thermal management.
Management & Monitoring: Integrated ASPEED AST2600 BMC with full IPMI 2.0, HTML5 iKVM, power controls, and sensor monitoring via Hexadata Management Console
Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, Hexadata has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
Redefine Performance with 4th/5th Gen Intel Xeon Scalable Processors and Intel Xeon CPU Max Series
Accelerators
built-in*
Increase ROI while improving efficiency and performance
Up to 64
cores
More tasks can be done simultaneously and faster with dedicated cores
DDR5
support
Increased memory frequency and throughput with DDR5 RDIMM support
64GB
HBM**
High bandwidth in-package memory massively speeds up data-intensive workloads
PCIe 5.0
lanes
Increased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators
CXL 1.1
support
Improve performance via memory coherency and direct accelerator memory access
*Different on-chip accelerators are supported depending on CPU SKUs and requires one-time activation, Please visit Intel's official website or contact technical support for details.
** HBM is an intel Xeon CPU Max Series only feature, Please check the server specifications for more information on support for the Intel Xeon CPU Max Series.
Power Efficiency
Automatic Fan Speed Control
Hexadata servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Hexadata has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Hexadata TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Hexadata Management Console
For management and maintenance of a server or a small cluster, users can use the Hexadata Management Console, which is preinstalled on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the Hexadata Management Console also provides -
1) Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
2) Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
3) Supports Remote KVM over IP which can provide access of BIOS on remote system during the trading hours also.
4) Supports remote media redirection through which even entire operating system and Patches can be deployed remotely without having the physical access of servers.
