Dual AMD EPYC™ 7003 Series Support – Up to 128 cores (64 per CPU) with 7nm architecture and AMD 3D V-Cache™, supporting high-performance compute tasks.
High Memory Capacity & Bandwidth – 16 DIMM slots supporting up to 4TB of DDR4 memory with 8-channel architecture per processor, including support for 256GB 3DS RDIMM/LRDIMM modules.
Advanced Storage Options – 12x 3.5” hot-swappable front bays, optional rear 2x 2.5” bays, and SAS 12G backplane with expander support (SAS HBA/RAID required).
Robust Expansion Capabilities – 6 PCIe Gen4 slots (5 x16, 1 x8), dual M.2 PCIe Gen4 x4 slots, and onboard management via Aspeed® AST2500.
Redundant Power & Cooling – Dual 800W/1200W Platinum PSUs and 3 powerful 80mm fans, ensuring high availability and system reliability.

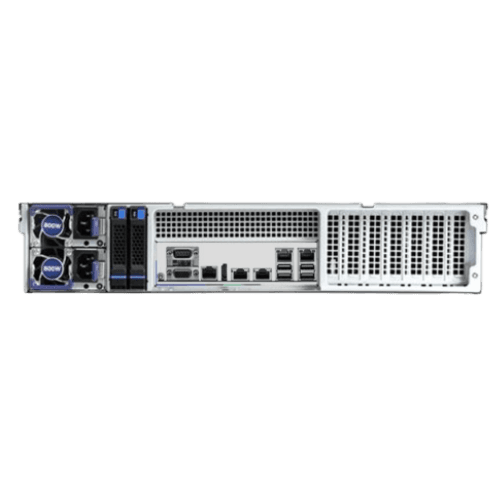

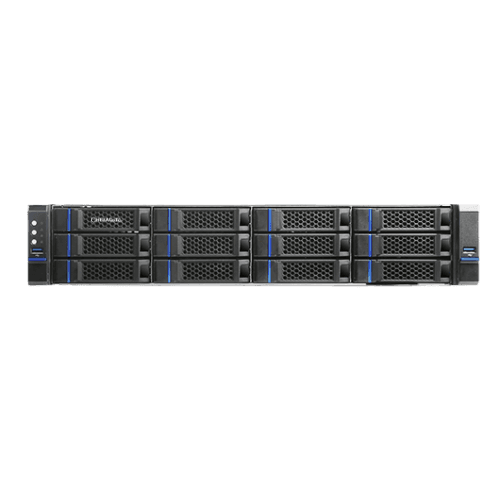

AMD EPYC DP Server System - 2U 12-Bay Gen4 PCIe 4.0
Rack-optimized servers that modernize your data center by delivering performance, resiliency, and scalability for core business-to-business-critical workloads.
Hexadata HDR-RM238621A is a high-end 2U 2-socket rackmount server configured with the AMD EPYC. For different application scenarios, HDR-RM238621A maintains the consistent high-quality and reliability of Hexadata servers. The product meets the application configuration requirements of various industries with high computing performance, complete ecological compatibility, and flexible configuration, and is suitable for various application scenarios such as data analysis and processing, deep learning, and distributed storage etc
Up to Dual 64 cores AMD EPYC
Ensure the highest performance and productivity for your pro-level apps and most challenging projects. Avoid system crashes in the middle of your workflow with Error Correction Code (ECC) memory that detects and corrects soft errors in the memory system on the fly.
Up to 4TB DDR4-3200 MHz SDRAM
Get greater application responsiveness to tackle large workloads with Eight-channel architecture providing up to 4 TB of memory.
Up to 240TB of Storage
Access and store massive amounts of data on the fly with 12 storage bays and dual M.2 slots.
Enhanced I/0
Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 128 lanes per socket with up to 256 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
