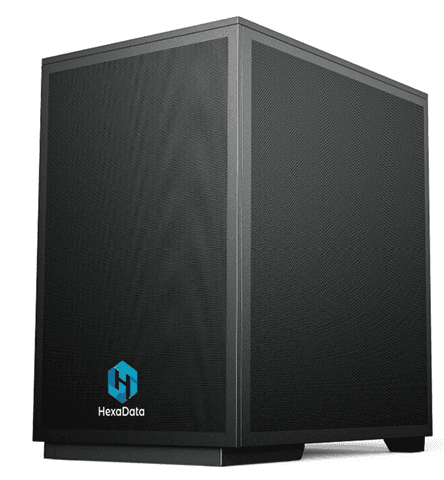

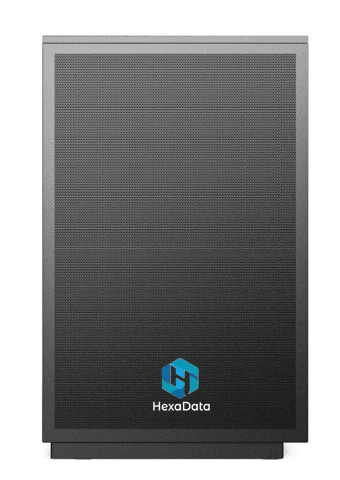

HD-SYS30 Version 001 iCUE High-Performance Workstation

Internal I/O
1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan) 4x System Fan, 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports
Rear I/O
1x DisplayPort, 9x USB 5Gbps Type-A ports, 1x 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, 1x HDMI™ 1x Thunderbolt™ 4 40Gbps (Type-C), 1x USB 20Gbps Type-C port
Front I/O
1x Type-C, 1x USB-3.0, 1x USB-2.0, HD Audio, Power Switch, Reset Switch.
Operating System
Support for Windows 11 64-bit
Power Supply
750/850/1000/1200/2000/2800W 80+ 92% Efficiency AC Input:- 90-264V~/ 16A, 47-63Hz
Weight
Net Weight: 30.5 kg Gross Weight: 40.5 kg
System Fans
3 x 120x120x25mm Optional : Liquid Cooling Kit (Please contact our Technical sales for the available option)
Operating Properties
Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Packaging Content
1 x HD-SW130 system
