Supports AMD EPYC 9004 series processors with 3D V-Cache on a single SP5 (LGA 6096) socket.
8 DDR5 DIMM slots with support for up to 512GB per slot and speeds up to 4800 MHz.
Offers 8 front-accessible hot-swappable bays supporting NVMe, SAS, and SATA drives.
Includes 2x 10GbE and 2x 1GbE LAN ports, plus extensive PCIe 5.0 and CXL 1.1 expansion options.
Features Aspeed AST6500 management controller with remote KVM, redundant 1200W/2000W PSU, and 6 high-speed PWM fans.

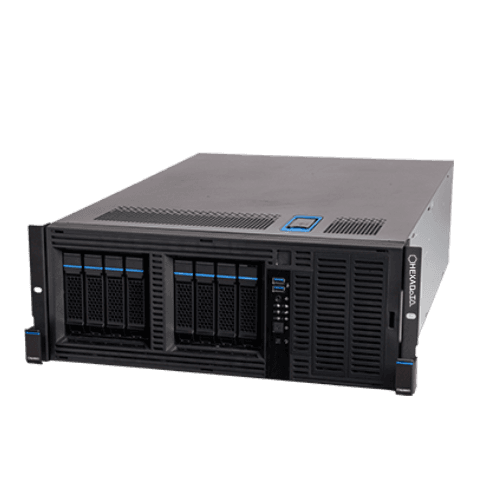

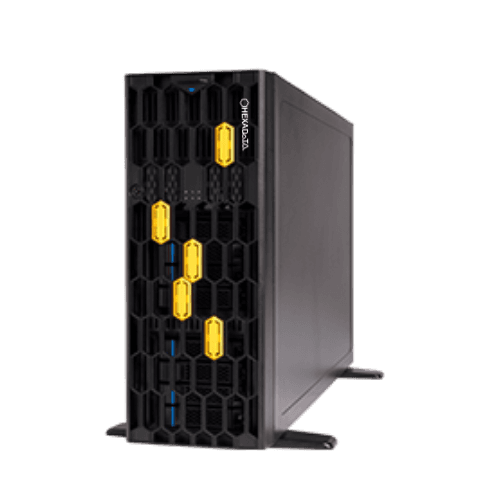

The Hexadata HD-SW150 Tower Convertible Rackmount System, supporting a single socket AMD EPYC 9000 series CPU, is designed to deliver robust performance, scalability, and flexibility for various server applications. Here’s a detailed breakdown of its key features and capabilities :
Processor and Memory:
AMD EPYC 9000 Series CPU: Offers high-performance processing power with configurations available in the EPYC 9000 series, suitable for compute-intensive workloads.
Memory Support: Supports up to 2TB of DDR5 ECC REG memory across 8 DIMM slots, providing ample memory capacity for memory-intensive applications. ECC (Error-Correcting Code) ensures data integrity.
Storage Options:
Hotswap Drive Bays: Includes 8 hot-swappable drive bays:
This configuration supports flexible storage options, accommodating high-speed NVMe SSDs and traditional SAS/SATA drives for varied storage needs.
Networking:
Network Interfaces: Integrated with dual Gigabit Ethernet ports (1G) and dual 10 Gigabit Ethernet ports (10G), ensuring high-speed networking capabilities for data-intensive applications.
Management and Security:
Integrated IPMI: Includes an integrated IPMI (Intelligent Platform Management Interface) with a dedicated management port, facilitating remote management and monitoring of system health and performance.
Security Features: Supports TPM (Trusted Platform Module) header with SPI interface for hardwarebased security functionalities.
Operating System Support:
Supports various server operating systems including:
System Management:
Aspeed® AST2600 Management Controller: Provides comprehensive board management capabilities including:
Use Cases:
Versatile Deployment: Designed for use in various environments including data centers, enterprise server rooms, and cloud deployments.
Applications: Ideal for virtualization, high-performance computing (HPC), database management, and other mission-critical applications requiring reliability, scalability, and high throughput
The Hexadata HD-SW150 Tower Convertible Rackmount System with support for AMD EPYC 9000 series CPUs offers a robust platform with extensive memory capacity, flexible storage options, highspeed networking capabilities, and advanced management features. It is well-suited for demanding server environments requiring performance, scalability, and security.
